10 Best Power Semiconductor Test Fixtures of 2026: Reliable Picks for Safer, Faster Bench Testing

Choosing the right power semiconductor test fixture can make bench testing safer, faster, and far more repeatable. Whether you are checking transistor pinouts, aging devices, or tracing faults, the right setup reduces guesswork and protects components.

In this roundup, we focus on practical fixtures and test tools that help with accurate measurements, stable contact, and easier diagnosis across a range of semiconductor and circuit-testing tasks.

Best 10 Power Semiconductor Test Fixture Picks for 2026

Auto-Detect Semiconductor Checker – Upgraded Semiconductor Tester Compatible with DCA55 Analyzer

If you need a power semiconductor test fixture for quick component screening, this upgraded tester is built around fully automatic detection. It identifies 10+ device types, including diodes, LEDs, BJTs, FETs, thyristors, and more, so you can check parts without manually switching modes.

Best For: Beginners, repair work, and fast sorting of mixed semiconductor parts.

Pros:

• Auto-identifies many common semiconductor components, including 2-pin and 3-pin parts.
• Simple probe-based operation with no professional background required.
• Built-in short-circuit current protection helps reduce damage risk during testing.
• Compact design with auto power-off and low-battery prompting.

Cons:

• Battery-powered design means the cells will need periodic replacement.
• Best suited to component testing rather than more advanced bench analysis.

Overall, this is a practical choice when you want a straightforward semiconductor tester that emphasizes automatic recognition and safe, everyday use. It fits well for home electronics, hobby projects, and light maintenance tasks.

TO220 Aging Fixture Base – TO220-15L Gold Plated 1.27 Spacing Fixture

This TO220 aging test base is a specialized power semiconductor test fixture designed for TO220-15L parts. With gold-plated contacts and 1.27 spacing, it’s meant for fixture-style aging tests where stable pin contact matters.

Best For: TO220-15L aging tests and socket-based fixture setups.

Pros:

• Purpose-built for TO220-15L devices.
• Gold-plated contact design supports reliable socket connection.
• 1.27 spacing suits fixture-based test arrangements.

Cons:

• Very specialized, so it is not a general-purpose semiconductor tester.
• Limited product details make it harder to judge broader compatibility.

For users setting up an aging rig or a dedicated TO220 fixture, this base is focused and specific rather than versatile. It makes sense when your workflow depends on a matching socket and repeatable contact.

Circuit Trace Diagnostic Tool – Power Probe Circuit Tracer for Shorts & Opens

While not a direct power semiconductor test fixture, this circuit tracer is useful when troubleshooting wiring around semiconductor-driven systems. It helps locate shorts, opens, and battery drains without stripping panels, and its transmitter/receiver setup is built for fast circuit diagnostics.

Best For: Automotive technicians tracking electrical faults in wiring and circuits.

Pros:

• Helps quickly locate shorts, opens, and battery drains.
• Includes transmitter and receiver with direction indicators for grounded and open signals.
• Works on 6–48 VDC systems, fitting many automotive diagnostic tasks.
• Comes with multiple probes and adapters in a blow-molded case.

Cons:

• It is a circuit tracer, not a dedicated semiconductor component tester.
• Designed primarily for automotive electrical systems rather than bench testing.

If your work involves tracing faults in powered circuits, this tool offers practical diagnostic coverage and a complete accessory set. It is especially useful when the issue is in wiring, continuity, or circuit isolation rather than component-level analysis.

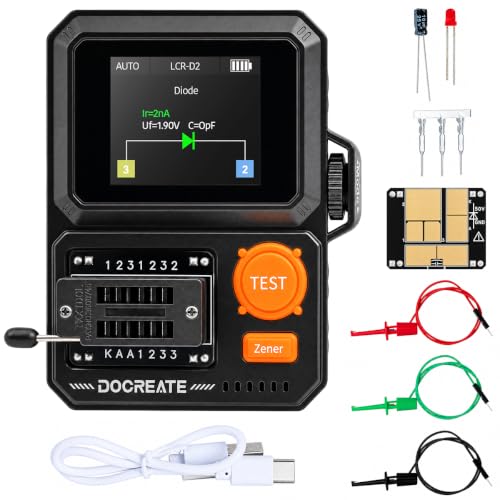

Detachable Board Component Tester – SORINA Transistor Tester with Complete Probes

If you want a power semiconductor test fixture that also handles broader component checks, this LCR-D2 tester is built for exactly that kind of bench use. It supports one-click auto scanning, shows the component type and pin sequence on a color screen, and includes both through-hole and detachable SMD test boards.

Best For: DIY repair, technician use, and testing mixed through-hole and SMD parts.

Pros:

• Auto-identifies capacitors, inductors, resistors, diodes, triodes, and FETs.
• Detachable SMD test board makes it easier to test small surface-mount parts.
• Built-in anti-burn and overvoltage protection adds safety during testing.
• Color display and simple controls make it approachable for beginners.

Cons:

• Battery-powered operation may be less convenient for heavy bench use than mains power.
• Best for component verification, not for more advanced instrument-grade analysis.

This is a versatile choice if you want one tester for many common repair tasks and part types. The included fixture options and protection features make it especially practical for routine troubleshooting and sorting unknown components.

Quick Voltage Check – Dual-Range Non-Contact Voltage Tester

If you need a power semiconductor test fixture-style tool for quick live-circuit checks, this non-contact voltage tester is built for simple, safe probing. It detects voltage without direct contact, switches between high and low sensitivity, and adds both audible and visual alerts for faster fault finding.

Best For: Quick, non-contact verification of wires, outlets, switches, and lamps

Pros:

• Non-contact detection helps check live current safely
• Dual sensitivity modes cover 12V-1000V and 48V-1000V ranges
• Red/yellow alerts plus beeper make voltage changes easy to notice
• Built-in flashlight supports work in dark areas or during outages

Cons:

• Not a bench-style fixture for holding or mechanically securing boards
• Battery-powered tool, so it depends on included AAA batteries

This is a practical choice when the job calls for fast voltage presence checks rather than a more elaborate test setup. The added flashlight and dual-range operation make it especially useful for everyday electrical troubleshooting.

PCB Hold-and-Test Platform – Universal PCB Test Frame Jig

For anyone shopping for a power semiconductor test fixture framework for board verification, this PCB universal test frame is aimed at stable inspection and repeatable testing. Its broad compatibility, precision-machined build, and easy operation make it a useful support tool for lab, factory, R&D, and DIY workflows.

Best For: Holding and inspecting a wide range of PCB types during testing

Pros:

• Broad PCB compatibility suits many board sizes and types
• Precision-engineered construction supports consistent, repeatable results
• User-friendly design simplifies setup and operation
• Durable build with secure base housing for long-term use

Cons:

• Focused on PCB support rather than electrical measurement features
• AC power source listed, but the notes do not describe powered functionality

As a fixture tool, this model is best when you want a dependable platform for circuit board inspection and development work. It emphasizes mechanical stability and workflow ease more than instrumentation.

Automotive DC Probe – 3-72V Digital LED Circuit Tester

When you need a power semiconductor test fixture-style probe for low-voltage DC diagnostics, this automotive circuit tester is designed for quick, readable checks. It covers 3-72V DC systems, adds bidirectional polarity indication, and uses a digital LED display that stays visible in day or night conditions.

Best For: Testing automotive and other low-voltage DC circuits

Pros:

• Wide 3-72V DC testing range works for many vehicle circuits
• Bidirectional mode shows polarity with red and green indicators
• Digital LED readout offers accurate voltage display with 0.1V resolution
• Sharp probe, long spring wire, and alligator clip support convenient use

Cons:

• Designed for DC wiring and circuits, not AC applications
• Not battery powered, so it relies on the connected test setup

This model is a strong fit for automotive troubleshooting where a visible reading and polarity feedback matter. The burn-resistant micro-current design and sturdy probe setup make it well suited to practical repair work.

Shop-Floor Multi-Tool – ANCEL PB600 All-in-One Automotive Probe

If you need a power semiconductor test fixture style tool for vehicle diagnostics, the ANCEL PB600 is built to combine several electrical tests in one handheld kit. It handles 12V/24V systems, supports component activation, and adds multimeter and oscilloscope-style readings so you can move beyond basic probe checks.

Best For: Technicians and DIYers who want one all-in-one automotive electrical tester for faster fault finding.

Pros:

• Combines probe tester, multimeter, oscilloscope, battery tester, relay tester, injector tester, and component activation functions.
• Supports voltage, resistance, current, frequency, polarity, duty cycle, and continuity checks.
• Includes a 10 ft lead, 20 ft extension cable, micro-piercing probe, and protection design for full-vehicle testing.
• Helps diagnose batteries, starting and charging issues, relays, fuses, fuel injectors, and open circuits.

Cons:

• Designed for 12V/24V vehicles, so it is not a universal bench tester.
• Its many functions may be more tool than a casual user needs for simple checks.

The PB600 is a strong choice when you want broad circuit-test coverage in one tool and need more insight than a standard test light can provide.

Budget Voltage Tester – Heavy Duty 3-65V DC Test Light

This power semiconductor test fixture keyword fit is best matched here as a simple circuit-checking tool for low-voltage DC systems. The JASTIND test light covers 3-65V DC, shows polarity, and uses an LCD backlit display to make voltage readings easier to see in bright or dark spaces.

Best For: Users who want a durable, easy-to-read automotive test light for basic DC voltage and polarity checks.

Pros:

• Wide 3-65V DC testing range for vehicle wiring, sockets, fuses, headlights, and taillights.
• Bidirectional voltage testing with polarity indication.
• LCD digital blue backlight display with 0.1V resolution and claimed ±0.2V accuracy.
• Spring wire, stainless steel probe, and large alligator clip support everyday use.

Cons:

• It is a voltmeter-style tester, so it does not offer the broader diagnostic modes of a probe tool.
• Best suited to low DC circuit checks rather than advanced component testing.

For straightforward voltage and polarity work, this tester keeps things simple while adding a clear display and rugged hardware.

Pro Circuit Scanner – Autel PowerScan PS100 2.0 Circuit Tester

When you’re shopping for a power semiconductor test fixture alternative for automotive work, the Autel PowerScan PS100 stands out as a versatile circuit probe for 6-30V systems. It combines voltage, continuity, resistance, AC/DC, and signal testing with component activation and short-circuit tracing, which makes it useful when fast diagnosis matters.

Best For: Automotive technicians and serious DIYers who need a fast all-in-one circuit probe for fault tracing.

Pros:

• Supports voltage, polarity, continuity, signal, AC/DC, resistance, and diode testing.
• Can activate components on or off the vehicle without jumper wires.
• Includes short/open circuit finding, bad-ground detection, and circuit breaker overload protection.
• 20 ft+20 ft cable setup helps with reach around the vehicle.

Cons:

• Limited to 6-30V vehicle electrical systems, so it is not meant for higher-voltage applications.
• Feature-rich design may be more than a basic test-light user needs.

The PS100 is a practical pick if you want one tool that speeds up electrical troubleshooting and provides more detail than a basic probe or test lamp.

How We Picked the Best Power Semiconductor Test Fixture

We looked for options that support dependable contact, clear test feedback, and broad compatibility with common bench and field-testing workflows. Priority went to models with useful features such as auto-identification, dual-range testing, polarity indication, and durable connectors or probe assemblies.

Because a Power Semiconductor Test Fixture is often used for repetitive checks, we also favored tools that reduce setup time and make it easier to test components consistently without rework.

Quick Comparison

For component-level testing, board-style fixtures and transistor testers are usually the best fit. For troubleshooting installed circuits, probe testers and circuit tracers are more practical. If you need general voltage or continuity checks, a non-contact detector or automotive power probe can be the more versatile choice.

Key Buying Factors for a Power Semiconductor Test Fixture

Device Compatibility

Confirm that the fixture supports the package types and lead spacing you actually test, such as TO-220, transistor packages, or mixed-device adapters. Incompatible spacing can create poor contact and unreliable readings.

Contact Quality and Stability

Look for gold-plated contacts, secure sockets, or rigid probe supports. Good contact matters more than raw feature count when you need stable readings on power devices that draw higher current or have sensitive pins.

Measurement Needs

Some users only need pinout identification or simple component checks, while others need short/open detection, polarity testing, continuity, or voltage measurement. Choose the level of test capability that matches your workflow so you are not paying for features you will not use.

Safety and Durability

Power testing can involve heat, repeated insertion cycles, and higher current paths. A well-built fixture should feel solid, resist wear, and keep your hands away from unnecessary exposure during live troubleshooting.

Who Should Buy Which Power Semiconductor Test Fixture?

Bench technicians and electronics hobbyists testing discrete parts will usually benefit most from a dedicated semiconductor fixture or tester with reliable pinout support. Repair technicians working on vehicles, power distribution, or installed equipment may prefer a probe-style tester or circuit tracer for faster fault isolation. If you need one tool for a broader range of checks, choose a versatile power probe or circuit tester rather than a highly specialized adapter.

For the best results, match the fixture to your most common use case first, then look for the widest compatibility and the clearest test readout within that category.
