Best Motor Drive Analyzer Equipment of 2026: 10 Smart Picks for Accurate Testing and Diagnostics

Choosing the right motor drive analyzer equipment can save hours of troubleshooting and help you spot performance issues before they become expensive failures. The best option depends on whether you’re testing RC brushless motors, HVAC ECM motors, or industrial drive systems.

In this roundup, we focus on practical tools that make measurement faster, more repeatable, and easier to interpret so you can match the right analyzer to your workflow and budget.

Best 10 Motor Drive Analyzer Equipment Picks for 2026

RC Brushless Diagnostic Analyzer – SkyRC Brushless Motor Analyzer

If you need motor drive analyzer equipment for RC brushless setups, this SkyRC tester focuses on the core checks that matter most: KV, RPM, current draw, timing, vibration, and Hall sensor function. It gives hobbyists a practical way to spot tuning issues, sensor problems, and mechanical imbalance before they affect performance.

Best For: RC hobby users who want a compact brushless motor analyzer for performance checks and troubleshooting.

Pros:

• Measures KV, RPM, current, and motor timing for detailed brushless motor analysis.
• Includes vibration and noise checks to help identify bearing, balance, or assembly issues.
• Tests Hall effect sensor function and provides timing analysis for Phase A, B, and C.
• 2×16 character LCD and status LEDs make readings easier to review in real time.

Cons:

• Designed for RC brushless motors rather than general industrial motor testing.
• Compact format may limit advanced workflow features compared with larger diagnostic systems.

This is a focused analyzer for hobby-grade brushless diagnostics, not a broad maintenance kit. If your main goal is checking motor health, sensor behavior, and timing consistency, it covers the essentials well.

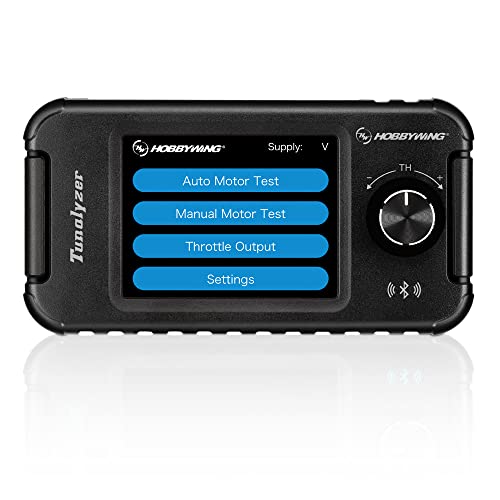

ESC Tune and Motor Analyzer – HOBBYWING Tunalyzer

For buyers comparing motor drive analyzer equipment in the HOBBYWING ecosystem, the Tunalyzer goes beyond basic motor checks by measuring KV, RPM, current, end-bell timing, rotor asymmetry, Hall signal deviation, and motor temperature. It also adds Bluetooth support for working with a compatible HOBBYWING ESC through the mobile app.

Best For: Hobbyists who want one tool to test brushless motor parameters and manage compatible HOBBYWING ESC settings.

Pros:

• Measures KV, RPM, current, end-bell timing, and sensor elements in real time.
• Checks rotor asymmetry, Hall signal deviation, and motor temperature.
• Built-in Bluetooth supports communication with compatible HOBBYWING ESCs.
• Can help with ESC parameter setting and firmware updating through the app.

Cons:

• Bluetooth ESC features are tied to compatible HOBBYWING systems.
• More specialized than a simple standalone motor tester.

The Tunalyzer is a strong fit if you want both motor diagnostics and ESC interaction in one unit. Its value is highest when you are already working with HOBBYWING components and want app-based control.

Budget Brushless Motor Monitor – SKYRC LCD Motor Tester

This SKYRC motor analyzer is a straightforward option for shoppers looking for motor drive analyzer equipment that handles both sensored and sensorless brushless motors. With LCD monitoring and connector-based setup, it is aimed at practical hobby testing rather than complex bench diagnostics.

Best For: RC users who want a simple, battery-powered brushless motor tester for everyday checks.

Pros:

• Compatible with both sensored and sensorless brushless motors.
• Battery-powered design makes it easy to use at the bench or track.
• LCD display provides basic monitoring in a compact package.
• Includes connectors and manual for setup support.

Cons:

• Measurement details are more limited than advanced analyzers.
• Requires a minimum operating voltage of 7.4 volts.

If you want a simple tester for brushless motor monitoring, this SKYRC unit keeps the workflow basic and portable. It is best viewed as a practical utility tool for routine checks rather than a full diagnostic suite.

Motor & Drive Maintenance Kit – FLUKE 1587/MDT FC Kit

This Fluke kit is a different kind of motor drive analyzer equipment, built for electrical maintenance and troubleshooting rather than hobby motor testing. It combines insulation testing, current measurement, and phase rotation checking in one set for preventive and predictive maintenance tasks.

Best For: Technicians who need a motor and drive test kit for insulation checks, current measurement, and phase rotation.

Pros:

• Includes the Fluke 1587FC insulation multimeter for advanced insulation testing.
• Comes with the i400 clamp meter for current measurement.
• Includes the 9040 phase rotation indicator for three-phase supply checks.
• Suited to preventive maintenance and PdM workflows.

Cons:

• Not a brushless motor analyzer for RC-style KV or RPM testing.
• Kit is oriented toward electrical maintenance, so it may be more than some users need.

For industrial or facility maintenance, this kit offers a broader electrical test approach than hobby analyzers. It is the strongest choice here if your priority is safe troubleshooting of motors, drives, and three-phase supply conditions.

Automotive Multimeter & Tachometer – ANENG SZ26 Engine Analyzer

If you’re shopping for motor drive analyzer equipment with broad automotive coverage, the ANENG SZ26 is built for practical engine diagnostics. It combines a 500–10000 RPM tachometer, dwell angle, duty cycle, DC current, AC/DC voltage, resistance, and more, making it useful for checking both engine behavior and electrical signals in one handheld tool.

Best For: Mechanics, DIY diagnosticians, and anyone who wants one compact tool for engine and electrical testing.

Pros:

• Measures RPM, dwell angle, duty cycle, DC current, AC/DC voltage, resistance, and more
• Large LCD display helps readings stay easy to see in lower light
• Rugged shockproof case and built-in stand add convenience in the shop
• Includes overload protection, insulated probes, battery, leads, clips, and storage bag

Cons:

• More of a multifunction automotive multimeter than a dedicated single-purpose analyzer
• RPM range is limited to 500–10000, so it may not suit every test scenario

The SZ26 stands out if you want a flexible, portable diagnostic meter instead of separate tools for every basic engine and electrical check. Its accessory kit also makes it easier to get started right away.

ECM Motor Troubleshooting Tool – PD510009 ECM Diagnostic Unit

For buyers focused on motor drive analyzer equipment aimed at ECM troubleshooting, this ECM Motor Diagnostic Tool keeps the job narrow and practical. Its listed function is troubleshooting ECM motors, so it makes sense for users who already know they need a dedicated diagnostic tool for that specific motor-control task.

Best For: Technicians who need a dedicated tool for troubleshooting ECM motors.

Pros:

• Purpose-built for troubleshooting ECM motors
• Simple, focused function can be easier to match to a specific repair need
• Compact 16-ounce unit for a straightforward shop tool

Cons:

• Very limited product details compared with more feature-rich diagnostic equipment
• Does not list multi-parameter measurement functions like voltage, current, or vibration

This is the most specialized option in the group, which can be a plus if you need ECM-specific troubleshooting rather than a broader analyzer. It is best viewed as a targeted diagnostic tool, not an all-in-one tester.

Industrial Vibration Analyzer – VM-428 Machine Condition Monitor

If your search for motor drive analyzer equipment leans toward condition monitoring, the VM-428 is built for vibration diagnostics on motors and rotating machinery. It measures acceleration, velocity, displacement, frequency, and temperature, and adds an external magnetic sensor plus PC software for logging and review.

Best For: Maintenance teams and technicians checking motors, pumps, compressors, and other rotating equipment.

Pros:

• Measures five key parameters: acceleration, velocity, displacement, frequency, and temperature
• External piezoelectric sensor with magnetic base supports stable readings on metal housings
• USB connectivity and PC software help with data logging and trend comparison
• Large backlit LCD shows real-time graphs and statistical values

Cons:

• Designed for periodic diagnostics, not a permanently installed monitoring system
• Not a multi-channel laboratory spectrum analyzer

The VM-428 is the most inspection-focused option here, especially when vibration and ISO-based severity checks matter. It is a strong pick for routine machine condition evaluation rather than basic electrical troubleshooting.

RC Motor Analyzer – BMA-01 Brushless RPM/KV Checker

If you need motor drive analyzer equipment for hobby RC setups, the BMA-01 is built around quick checks of KV, voltage, RPM, and current. It also includes motor timing and noise level readings, making it useful for comparing brushless motors in both sensored and sensorless setups.

Best For: RC builders and tuners who want a compact analyzer for brushless motor performance checks.

Pros:

• Measures KV, voltage, RPM, and amps in one handheld unit.
• Supports both sensored and sensorless brushless motors.
• Includes motor timing and noise level readouts.
• LCD-based design keeps the tool compact and portable.

Cons:

• Focused on RC brushless motors rather than general industrial use.
• Best suited to basic comparison and setup checks, not deeper diagnostics.

Overall, this is a practical choice if you want straightforward motor data without a lot of bulk. It fits well as a bench-side checker for hobbyists who routinely swap motors and want fast performance feedback.

Portable Motor Health Analyzer – Motor Genie MCA Portable Analyzer

For buyers comparing motor drive analyzer equipment for maintenance work, the Motor Genie MCA is aimed at full motor health analysis rather than simple meter checks. It uses MCA predictive maintenance technology to analyze stator, rotor, resistance, insulation, and contamination, and it is designed to work quickly on AC induction motors under 1000V.

Best For: Maintenance teams and technicians who need portable predictive motor condition analysis.

Pros:

• Analyzes multiple internal electrical factors, including stator and rotor condition.
• Portable, hand-held design can reach overhead or submerged motors.
• Uses MCA technology for predictive maintenance workflows.
• Can fully analyze AC induction motors under 1000V in under 3 minutes.

Cons:

• Specialized for AC induction motor analysis rather than general-purpose testing.
• More advanced than a basic megohmmeter, so it may be more than casual users need.

This is the most maintenance-focused option in the group, with a clear emphasis on speed and deeper condition insight. If your goal is to spot motor issues before they become downtime, it stands out as a serious field tool.

Vibration Condition Monitor – AS63B LCD Vibration Analyzer

If you’re shopping for motor drive analyzer equipment to monitor machine condition, the AS63B focuses on vibration rather than electrical motor testing. It measures acceleration, velocity, and displacement, which makes it useful for tracking bearing, motor, pump, fan, compressor, and other machinery vibration levels.

Best For: Condition monitoring on motors and rotating machinery where vibration is the main concern.

Pros:

• Measures acceleration, velocity, and displacement.
• Uses a piezoelectric accelerometer for vibration detection.
• Large LCD with backlight improves visibility in low light.
• Compact and portable for field use across many machinery types.

Cons:

• Does not provide electrical motor analysis like KV, insulation, or MCA testing.
• Primarily a vibration meter, so it is narrower in scope than multi-function analyzers.

For users who care most about vibration severity, this is a straightforward monitoring tool with clear readouts. It’s a better fit for machine condition checks than for deep electrical diagnostics.

How We Picked the Best Motor Drive Analyzer Equipment

We selected Motor Drive Analyzer Equipment based on measurement range, diagnostic depth, ease of use, portability, display clarity, and overall fit for the intended application. We also prioritized tools that help reduce guesswork, whether you need basic speed and voltage checks or deeper motor and drive troubleshooting.

Quick Comparison

At a high level, these tools fall into a few categories: hobby-grade brushless motor testers, multimeters with tachometer and engine-test functions, vibration analyzers for rotating equipment, and full electrical motor analyzers for more advanced industrial diagnostics. The best choice is the one that matches your motor type and the kind of faults you actually need to isolate.

Key Buying Factors for Motor Drive Analyzer Equipment

Measurement Needs

Start with the variables you must test most often: RPM, KV, timing, current draw, voltage, vibration, phase rotation, insulation resistance, or motor health. If you only need quick bench checks, a compact analyzer may be enough. For service work and preventative maintenance, look for broader diagnostic coverage.

Motor Type and Environment

Brushless RC motors, ECM motors, and industrial drive systems require different tools. Make sure the analyzer supports sensored or sensorless setups, the voltage levels you work with, and the environment where it will be used. Portability matters for field service, while software integration and rugged construction matter more in industrial settings.

Readability and Workflow

A clear LCD or backlit screen, simple connectors, and straightforward test modes can speed up diagnostics significantly. If multiple technicians will use the tool, choose Motor Drive Analyzer Equipment with intuitive controls and consistent results.

Reporting and Data Use

If you need to track trends, compare readings over time, or document failures, software compatibility and export options are valuable. For one-off checks, standalone meters may be the better value.

Who Should Buy Which Motor Drive Analyzer Equipment?

Hobbyists and RC users should look for compact brushless motor analyzers built for KV, RPM, timing, and sensor checks. Technicians working on automotive or light industrial equipment may benefit from all-in-one meters with tachometer and electrical testing functions. Maintenance teams and vibration-focused users should choose analyzers designed for rotating machinery and condition monitoring. For advanced electrical diagnostics, a dedicated motor analyzer or motor-and-drive kit offers the most complete insight and is usually worth the higher price.

In short, the best Motor Drive Analyzer Equipment is the one that gives you the right data with the least setup time. Match the tool to the motor, the fault type, and how often you’ll use it.
