10 Best Laser Shaft Alignment Tools of 2026 for Faster, More Accurate Machine Setup

Choosing the right laser shaft alignment tool can reduce vibration, extend equipment life, and speed up routine maintenance. The best systems make alignment easier on motors, pumps, fans, and other rotating equipment.

Below, we focus on practical buying considerations so you can match the right tool to your shafts, budget, and workflow without paying for features you will not use.

Best 10 Laser Shaft Alignment Tool Picks for 2026

Wireless Shaft Alignment System – SKF TKSA 41 Wireless Laser Shaft Alignment System

If you need a laser shaft alignment tool that makes difficult setups easier to manage, the SKF TKSA 41 is built around wireless handling and hands-free measurement. It supports free measurement from any starting angle, then completes an alignment with just a 90° sweep, which can simplify work around tight machinery and awkward access points.

Best For: Technicians who want wireless shaft alignment with automatic measurement and reporting.

Pros:

• Wireless communication improves handling and lets you work from a safer position on difficult-to-reach applications.
• Free measurement allows alignment to start at any angle and finish with only a 90° angular sweep.
• Automatic measurement takes readings hands-free when the heads rotate into the correct position.
• Automatic reports can include notes and pictures from the built-in camera and export as PDF files.

Cons:

• Class 2 laser product with 1mW capacity, so it is built for professional alignment use rather than general-purpose tasks.
• The unit is relatively heavy at 11.5 pounds.

Overall, this SKF system is a strong fit for buyers who value workflow efficiency, documentation, and safer positioning during alignment jobs. Its wireless design and automated reporting stand out if you need a more streamlined shaft alignment process.

Single-Operator Belt Alignment – Fluke 835 Laser Belt Alignment Tool

The Fluke 835 is a practical laser shaft alignment tool for belt and pulley jobs where one-person operation matters. Its reflected laser technology is designed to double the distance while improving accuracy, and the reflector-based setup follows the OPTALIGN reflected beam principle for strong angular resolution.

Best For: Single-operator pulley and belt alignment tasks that benefit from reflected laser technology.

Pros:

• Tailor-made for pulley alignment jobs with easy one-person operation.
• Reflected laser technology doubles the distance and enhances accuracy.
• Uses the proven OPTALIGN reflected beam principle for maximum angular resolution.
• Class II laser, under 1.0mW, with reflector included.

Cons:

• Designed specifically for belt and pulley alignment rather than broader shaft alignment applications.
• No reporting, camera, or advanced automation features are listed in the supplied details.

This is a focused option for buyers who want a straightforward alignment tool that emphasizes accuracy and solo use. If your main job is pulley alignment, the Fluke 835 keeps the workflow simple and purpose-built.

Indicator-Based Alignment Kit – Starrett Shaft Alignment Chain Clamp Set

This Starrett shaft alignment chain clamp set is a mechanical support option for alignment work when you want a durable, accessory-based setup. It includes an indicator, snug, extension plate, and multiple posts, giving you a configurable kit for positioning and measuring tasks rather than a laser shaft alignment tool.

Best For: Buyers who need a shaft alignment accessory kit with a dial indicator and adjustable posts.

Pros:

• Includes a 196B5 indicator, PT18724 snug, extension plate, and multiple post sizes.
• Built from stainless steel and packaged with a case for storage and transport.
• Made in the USA, which may matter to buyers prioritizing domestic manufacturing.
• Designed as a configurable alignment set for positioning and measurement support.

Cons:

• Not a laser alignment device, so it does not match the keyword-focused electronic tools in this roundup.
• Heavier than the laser tools listed here at 7 pounds.

For shops that prefer a traditional indicator-based approach, this Starrett set offers a solid mechanical alternative. It is best viewed as an alignment support kit rather than a modern laser shaft alignment solution.

Magnetic Sheave Alignment Tool – Johnson 40-6200 Red Laser Sheave Alignment

The Johnson Level 40-6200 is a compact magnetic laser shaft alignment tool aimed at sheave, pulley, sprocket, and related plant equipment jobs. Its rare earth magnets help it secure to ferrous metal surfaces, and the three laser targets make it easier to adjust to different sheave widths during alignment checks.

Best For: Maintenance teams aligning sheaves, pulleys, sprockets, and other plant equipment.

Pros:

• Rare earth magnets provide a secure fit on ferrous metals for quicker setup.
• Three laser targets improve versatility across different sheave widths.
• Designed to help reduce vibration and wear on belts and motor bearings.
• Comes in a hard case and includes 2 AAA batteries.

Cons:

• Listed accuracy is specific to its sheave alignment use case rather than general shaft alignment.
• Laser class and output may be more limited than higher-end alignment systems.

This Johnson model is a good fit if your priority is fast magnetic setup and practical alignment checks on belt-driven equipment. It is especially useful when you want a compact tool that covers multiple plant maintenance applications.

Compact Wireless Laser Alignment – SKF TKSA 51 Wireless Laser Shaft Alignment System

If you want a laser shaft alignment tool that favors flexibility in tight machine spaces, the SKF TKSA 51 is built for quick, practical alignment work. Its three-position measurement can start at any angle with only 40 degrees of total rotation, while the 3-D live view helps you position the heads and confirm when correction is on target.

Best For: Technicians who need a compact wireless alignment system for limited-space jobs and straightforward reporting.

Pros:

• Requires only 40 degrees of total rotation, which helps in cramped setups.
• 3-D live view makes head positioning and correction checks more intuitive.
• Measurement averaging helps reduce disturbance from vibration or outside influences.
• Automatically generates customizable alignment reports that can be exported as PDFs.

Cons:

• It is still a specialized alignment system, so it may be more tool than some shops need.
• Best results depend on using the included components and app workflow.

This model stands out as a portable, feature-rich laser shaft alignment tool for users who value flexibility and documentation. The included mounting accessories, compact case, and wireless workflow make it a strong fit for field service and routine maintenance.

Reverse Indicator Combo Set – Aline A-3000 Shaft Alignment Tool Set

The Aline A-3000 is a practical shaft alignment tool for crews that prefer the reverse-indicator method over laser hardware. It combines the A-2000 and A-1000 into one case, covers 1-inch to 10-inch shafts, and is designed to surface issues like pipe strain, soft foot, and bearing clearance that laser alignment does not directly measure.

Best For: Millwrights and maintenance teams who already own dial indicators and want a rugged reverse-indicator setup.

Pros:

• Covers 1″-10″ shafts in a single case, reducing kit swaps between jobs.
• Built around the reverse-indicator method per API 686 and ANSI S2.75.
• Helps reveal pipe strain, soft foot, and bearing clearance issues.
• Machined billet aluminum construction and a rugged case are made for field use.

Cons:

• Requires dial indicators you already own, since it is a base combo set.
• It is a manual method, so it is not as automated as a laser alignment system.

This is a strong choice when your workflow depends on reverse-indicator alignment and you want a durable kit that stays in service for years. It is especially appealing for crews that need broader diagnostic visibility without paying for a laser system.

Heavy-Duty Professional Laser Alignment – SKF TKSA 71 Wireless Shaft Alignment System

For buyers comparing a laser shaft alignment tool for tougher environments, the SKF TKSA 71 is the more robust option in this group. It supports up to 10 m measurement distance, offers disturbance compensation and automatic measurement, and uses completely sealed measuring units to handle dust and water.

Best For: Shops and field teams that need a professional wireless laser alignment system for harsh environments and narrow spaces.

Pros:

• Up to 10 m measurement distance supports larger alignment setups.
• Sealed IP67 measuring units are built for dust and water resistance.
• Only 40 degrees of total rotation helps in extremely narrow spaces.
• Guided software, explanatory videos, and automatic measurement simplify use.

Cons:

• It is a professional-grade system, so it may be more than casual users need.
• The advanced feature set may be unnecessary for simpler alignment jobs.

The TKSA 71 is a strong pick when you need more durability and alignment reach than a basic system provides. Its compact measuring units, guided workflow, and broad application support make it well suited to demanding maintenance environments.

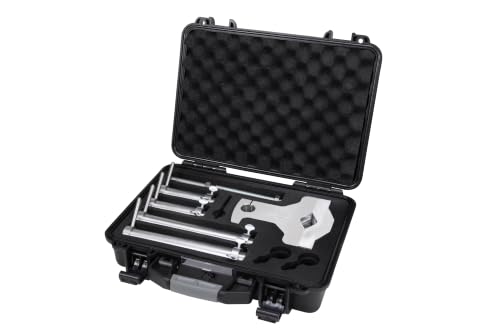

Reverse-Indicator Base Set – Aline A-1000 for 1"-5" shafts

If you need a laser shaft alignment tool alternative for larger rotating equipment, the Aline A-1000 is a reverse-dial indicator setup built for shops that already own indicators. It fits 1″-5″ shafts, reaches up to 18″, and uses a 3.5″ hub-to-bar clearance to get over the coupling on average-size industrial machines.

Best For: Technicians and maintenance crews that already have Starrett 196B1 dial indicators and want a reverse-indicator shaft alignment method for common industrial equipment.

Pros:

• Fits 1″-5″ shafts and expands to 18″ for common equipment sizes
• Reverse-indicator design can surface pipe strain, soft foot, runout, and bearing clearance issues
• Machined from billet aluminum and supplied in a rugged high-impact case
• Base set keeps cost down for crews that already own indicators

Cons:

• Does not include dial indicators
• Requires users comfortable with the reverse-indicator method
• Bulkier than compact tools made for smaller shafts

The A-1000 is a practical fit when you want a shaft alignment workflow that complements, rather than replaces, a laser shaft alignment tool. It is best when the shaft size and clearance match the equipment it was designed to cover.

App-Based Alignment Kit – SKF TKSA 11 for Android and iOS

The SKF TKSA 11 is a portable shaft alignment tool that works with Android and iOS devices through SKF’s app. If you’re comparing it to a laser shaft alignment tool, the appeal here is the lightweight, app-driven layout and the included accessories needed for setup, calibration, and alignment work.

Best For: Users who want a compact, app-connected SKF alignment tool for mobile industrial work on Android or iOS devices.

Pros:

• Compatible with Android and iOS devices
• Lightweight and portable for easier handling in the field
• Includes measuring unit, reference bars, V-supports, tape measure, and carry case
• Works with SKF’s app for alignment tasks

Cons:

• Depends on a smartphone or tablet for operation
• Less self-contained than a fully integrated alignment system
• Product notes point to a kid-age descriptor that is not relevant to industrial use

For crews that want a modern, app-based alignment workflow, the TKSA 11 keeps the setup compact and portable. It makes the most sense when you value device compatibility and included hardware over a more traditional standalone package.

Compact Reverse-Indicator Set – Aline A-750 for tight clearances

If you need a laser shaft alignment tool alternative for smaller machines, the Aline A-750 is built for tight spaces and short shafts. It fits shafts and hubs up to 2.8″, needs just 3″ of clearance to rotate, and uses a compact reverse-indicator layout for equipment where larger tools simply will not fit.

Best For: Technicians working on smaller equipment with limited clearance who already own dial indicators and need a compact reverse-indicator setup.

Pros:

• Fits shafts and hubs up to 2.8″
• Only needs 3″ clearance to rotate
• Compact design adapts to tight spaces and smaller equipment
• Billet aluminum construction and rugged case for durability

Cons:

• Does not include dial indicators
• Too small for larger shaft applications covered by bigger sets
• Best suited to users comfortable with the reverse-indicator method

The A-750 is the practical choice when the machine footprint is the main constraint. Its small-clearance design makes it a better fit than larger alignment setups for compact industrial equipment.

How We Picked the Best Laser Shaft Alignment Tool

Our shortlist emphasizes alignment accuracy, ease of setup, measurement range, display clarity, and real-world usability. We also weighed whether each Laser Shaft Alignment Tool is better suited to compact service jobs, frequent field work, or more demanding plant maintenance.

We favored systems that help reduce trial-and-error during alignment, especially for teams that need repeatable results across multiple machines.

Quick Comparison

In general, wireless laser systems are best for fast workflows and easier setup, while reverse dial indicator kits can be a smart choice for teams that want a lower-cost, mechanical approach. The right pick depends on how often you align machinery, how tight the working space is, and whether you need app-based guidance or a more traditional kit.

Key Buying Factors for a Laser Shaft Alignment Tool

Measurement Method

Laser systems typically offer faster setup and clearer guidance, while dial-based tools may suit users who prefer a hands-on method. If your team values speed and simpler readings, a modern Laser Shaft Alignment Tool is usually the better fit.

Shaft Size and Clearance

Check the shaft diameter range, coupling access, and required hub-to-bar clearance before buying. A tool may be highly accurate but still inconvenient if it cannot fit your machine layout.

Wireless and App Features

Wireless heads, tablet or phone compatibility, and guided workflows can make alignment easier for less experienced users. These features are especially helpful when you are working alone or need to document results.

Accuracy and Repeatability

Look for a system that supports consistent readings over multiple setups. The goal is not just a single good alignment, but dependable results every time the machine is serviced.

Durability and Support

For industrial use, consider build quality, battery life, and vendor support. A dependable tool saves time over the long run and holds up better in demanding environments.

Who Should Buy Which Laser Shaft Alignment Tool?

If you service a wide range of rotating equipment and want the easiest workflow, a wireless laser system is usually the best starting point. If you are budget-conscious or prefer a mechanical approach, a reverse dial indicator set may be the better value.

For teams that handle frequent maintenance, choose a Laser Shaft Alignment Tool with strong app support, flexible measurement range, and enough clearance for your toughest machines. For occasional users, prioritize simplicity and compatibility over advanced features.
