10 Best Digital Radius Gauges for Engineering in 2026

Choosing the right gauge can save time, reduce rework, and improve confidence in every measurement. If you need accurate inside and outside radius checks, a digital radius gauge for engineering is a practical shop-floor upgrade.

This roundup focuses on precision, range, readability, and build quality so you can quickly narrow down the best option for your workflow.

Best 10 Digital Radius Gauge for Engineering Picks for 2026

Precision Claws – Digital Radius Gauge for High-Precision Measurement

This digital radius gauge for engineering is built for users who need a straightforward way to check inside and outside radii with interchangeable claws. With five jaw sizes and a 5-700mm radius range, it suits arc surfaces, depth-style checks, and compact shop-floor measurement work.

Best For: Engineers, machinists, and industrial users who need a versatile radius gauge with switchable mm/inch reading.

Pros:

• Five interchangeable measuring jaws: 10mm, 20mm, 30mm, 60mm, and 100mm
• Measures both inner and outer radii, plus a 0-12.7mm linear range
• Large LCD display and inch/metric conversion for faster reading
• Hard aluminum alloy probe and compact structure for durability

Cons:

• Measurement tolerance note is listed as +/- 1-3cm in the supplied details
• No data export or backlit display is specified

For general engineering use, this model offers broad radius coverage and a simple display-driven workflow. It is a practical choice when interchangeable claws and basic unit conversion matter more than advanced connectivity.

Shop-Floor Pick – Digital Inner and Outer Radius Measuring Instrument

If you want a digital radius gauge for engineering that emphasizes simple setup and broad coverage, this model is built around five replaceable claws and a 5-700mm radius range. The digital readout is designed to show radius or diameter values after the measuring head is placed firmly against the workpiece.

Best For: Users who want a straightforward radius measuring tool with clearly defined accuracy specs and replaceable claws.

Pros:

• Five claw sizes: 10mm, 20mm, 30mm, 60mm, and 100mm
• Listed radius measurement error of ΔR≤0.01*R
• Linear measurement error listed as ΔS≤0.02mm
• Includes 2 CR2 batteries and uses space aluminum material

Cons:

• Requires careful contact and a stable reading to avoid errors
• No USB export or backlit display is mentioned in the supplied notes

This is a practical pick when you need a conventional radius gauge with a wide measurement span and replaceable claws. The emphasis here is on basic measurement utility rather than extra workflow features.

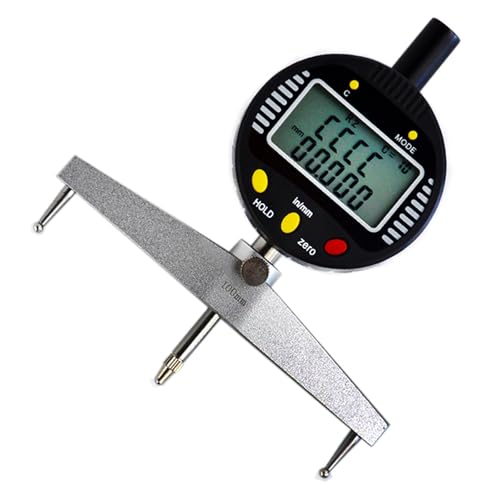

Workflow Upgrade – Electronic Digital Radius Gauge with USB Export

For buyers comparing a digital radius gauge for engineering and woodworking, this model stands out because it adds USB data export to the usual inner, outer, depth, and step measurement functions. It also combines a 5-700mm radius range with interchangeable claws and a backlit LCD for easier reading.

Best For: Engineers, woodworkers, and technicians who want measurement capture plus computer or printer output.

Pros:

• Measures outer radius, inner radius, depth, and step dimensions
• USB interface supports plug-and-play data export
• Backlit LCD improves visibility under strong lighting
• Hard aluminum alloy probes are described as corrosion- and wear-resistant

Cons:

• USB supports data transfer only, not charging
• No battery count is listed in the supplied notes

This model is best when the measurement result needs to move beyond the tool itself and into reports or printers. The added workflow features make it especially useful in environments where documentation matters.

Measurement Range Pro – Digital Inner and Outer Radius Gauge

This digital radius gauge for engineering is positioned as a broad-use tool for outer and inner radius work, with depth and step measurement also supported. It includes five replaceable claws, a 5-700mm radius range, and a 0-12.7mm displacement range, making it a practical option for varied curved-surface checks.

Best For: Users who want a feature-rich radius gauge with data retention and function switching for general measurement work.

Pros:

• Five replaceable claws: 10mm, 20mm, 30mm, 60mm, and 100mm
• Supports outer radius, inner radius, depth, and step measurement
• Large screen, unit conversion, data retention, and zeroing at any position
• Listed radius error of ΔR≤0.01*R and linear error of ΔS≤0.02mm

Cons:

• Supplied notes do not mention USB export or a backlit display
• Durable construction is described broadly, but specific housing material is not detailed

If you want a radius gauge that covers the basics plus a few useful display functions, this model is a solid all-around choice. It focuses on practical measurement flexibility rather than specialized connectivity.

Precision Leaf Set – Mitutoyo 15-Leaf Radius Gage

If you need a dependable digital radius gauge for engineering tasks but prefer a purely mechanical reference tool, this Mitutoyo radius gage is built for precise inside and outside radius checks. Its 15-leaf stainless steel set covers 1/32″ to 1/4″ in 1/64″ increments, making it useful for machining, layout, and inspection work where quick visual comparison matters.

Best For: Engineers, machinists, and inspectors who want a compact leaf-style radius gauge for fine manual checking.

Pros:

• Covers 1/32″ to 1/4″ in precise 1/64″ steps.
• Each leaf includes matching concave and convex radius pairs for inside and outside measurements.
• Stamped radius sizes make leaf selection quick and reduce mix-ups.
• Locking clamp helps hold the chosen leaf securely during use.

Cons:

• Not a digital model, so it does not provide an electronic readout.
• Smaller measurement range than digital radius gauges with interchangeable jaws.

This is a straightforward, high-precision option when you want reliable radius verification without batteries or electronics. It is best suited to users who value a simple inspection tool from a long-established metrology brand.

All-in-One Digital Picker – 3-in-1 Digital Radius Gauge

This digital radius gauge for engineering combines radius checking with depth, step, and outside/inside measurement functions, making it a flexible choice for shop work. It offers a 0.2″-27.5″ radius range, five interchangeable jaws, a large display, inch/metric conversion, data retention, and a zero reference plane for more convenient setup.

Best For: Users who want a multifunction digital radius gauge with broad range and measurement flexibility.

Pros:

• Measures outside radius, inside radius, depth, step, and indicator-style applications.
• Large display with inch/metric conversion and data retention.
• Five interchangeable jaws help match different measurement needs.
• Includes a data transmission interface for output to a computer.

Cons:

• Requires a lithium-ion battery.
• Bulkier than a simple leaf-style gauge.

For engineering users who want one tool to handle more than just radius checks, this model is the most feature-rich of the group. Its wide range and digital functions make it a practical pick for general shop measurement tasks.

High-Accuracy Digital Choice – CGOLDENWALL Digital Radius Gauge

When shopping for a digital radius gauge for engineering, this CGOLDENWALL model is aimed at users who need electronic readout, interchangeable jaws, and support for both inner and outer radius work. It measures a 5-700 mm radius range, includes depth and step measurement, and offers a high-definition display with metric/imperial switching and a computer data connection port.

Best For: Shops and users who need a digital radius gauge with a wide range and clear electronic display.

Pros:

• Measures inside and outside radius, depth, and step.
• Large high-definition display shows radius value, units, and measurement details clearly.
• Five interchangeable jaws cover a wide set of applications.
• Data connection port supports computer output.

Cons:

• Battery is not included.
• Heavier than a compact leaf gauge.

This model is well suited to practical daily measurement tasks where readability and versatility matter. If you want a handheld digital tool with a wide radius range and added data handling features, it fits that role well.

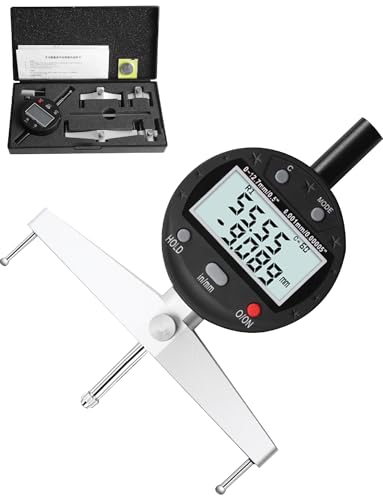

Precision Arc Measuring – Digital Radius Gauge for 5–700mm

This digital radius gauge for engineering is built for measuring both inner and outer radii across a wide 5-700mm range. With five interchangeable jaws and support for depth and step measurements, it suits practical shop use where quick, readable arc measurements matter.

Best For: Engineers, metalworkers, and mold makers who need a compact gauge for multiple arc and step measurement tasks.

Pros:

• Measures inner and outer radii, plus depth and step dimensions
• Includes 5 interchangeable jaws: 10mm, 20mm, 30mm, 60mm, and 100mm
• Large HD display shows radius R value and supports metric/imperial units
• Hand-held, fast-reading design for shop and field use

Cons:

• Requires choosing the correct jaw for the measurement
• Focused on arc and related measurements rather than general-purpose metrology

This is a strong option if you want a digital radius gauge for engineering work with broad radius coverage and straightforward readout. The interchangeable jaws and unit switching make it practical for varied measuring jobs on metal, wood, and steel forms.

Multi-Function Layout Tool – Digital Radius Gauge with USB Output

If you need a digital radius gauge for engineering tasks that goes beyond simple radius checks, this model adds inside, outside, depth, and step measurement modes. It covers the same 5-700mm range and includes five changeable jaws, making it a versatile choice for arc and mold work.

Best For: Users who want a multi-function radius gauge with data output for workshop or manufacturing use.

Pros:

• Multi-function tool for outside, inside, depth, and step measurements
• Five interchangeable jaws help match different arc sizes
• HD display makes readings clear at a glance
• USB interface allows data output to a computer

Cons:

• Battery requirements are specific and may need planning
• Primarily designed around arc and mold measurement tasks

This model stands out for its data connection port and broad measurement modes. For users who want a digital radius gauge for engineering applications with computer output and flexible jaw selection, it offers a very practical feature set.

High-Accuracy Workshop Pick – Digital Radius Gauge with Fine Resolution

This digital radius gauge for engineering offers a 5-700mm radius range with inner and outer radius measurement plus depth and step functions. It also includes a digital dial indicator function with fine 0.005mm resolution, which makes it a strong fit for detailed shop measurements.

Best For: Buyers who want a high-accuracy gauge with fine resolution and a complete accessory set.

Pros:

• 0.005mm resolution for fine measurement work
• Measures outer radius, inner radius, depth, and step dimensions
• Large HD display shows radius value, jaws, and metric/imperial units
• Includes 5 interchangeable jaws and a fitted case

Cons:

• Battery is not included
• More specialized than a basic radius-only gauge

For users focused on precision, this model brings the strongest measurement resolution in the group while still keeping the familiar interchangeable-jaw format. It is a solid digital radius gauge for engineering, mold work, and other detailed arc-measuring jobs.

How We Picked the Best Digital Radius Gauge for Engineering

We prioritized measurement accuracy, usable radius range, jaw or leaf versatility, display clarity, and overall durability. For engineering tasks, repeatability matters as much as headline precision, so we also looked for stable construction and easy handling in real workshop conditions.

Quick Comparison

The strongest options generally fall into two groups: digital models with interchangeable jaws for flexible inside/outside measurements, and traditional leaf-style gauges for fast manual checking. A Digital Radius Gauge for Engineering is usually the better pick when you want easier reading, broader coverage, and more efficient day-to-day use.

Key Buying Factors for a Digital Radius Gauge for Engineering

Measurement Range

Make sure the gauge covers the radii you actually work with. Many digital models span from small detail work to large curves, while fixed leaf gauges are more limited but can be very reliable for specific sizes.

Inside Vs. Outside Radius

Not every gauge handles both. If your projects include machined parts, formed sheet metal, or wood profiles, choose a model clearly rated for inside and outside radius checks.

Jaw or Leaf Design

Interchangeable jaws offer flexibility across more shapes and sizes. Leaf-style gauges can be faster for inspection, but they are less adaptable. Consider how often you switch between tasks.

Readout and Ease of Use

A clear digital display helps reduce interpretation errors, especially in low-light shops or when multiple people share the same tool. Simple controls and quick zeroing also improve workflow.

Material and Build Quality

Stainless steel and similarly rigid constructions tend to hold alignment better and stand up to frequent use. For engineering work, durability is not optional; it directly affects consistency.

Who Should Buy Which Digital Radius Gauge for Engineering?

If you want broad versatility and fast digital readings, choose a multi-jaw digital model. If you mainly verify standard sizes and value simplicity, a leaf gauge may be enough. For mixed fabrication, inspection, and prototyping, the best Digital Radius Gauge for Engineering is usually the one that balances range, readability, and ruggedness rather than the one with the most features.
